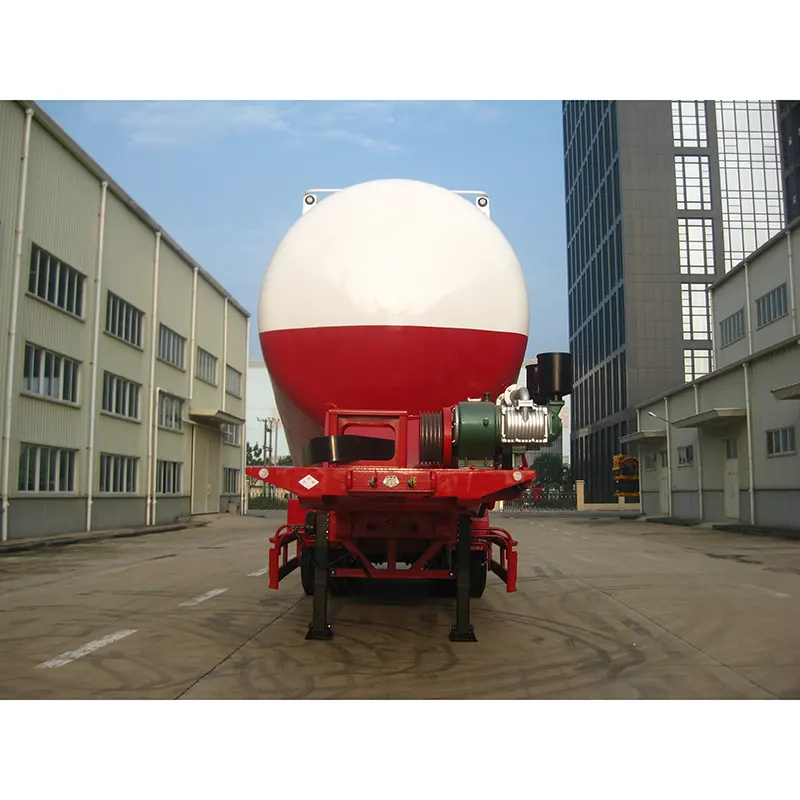

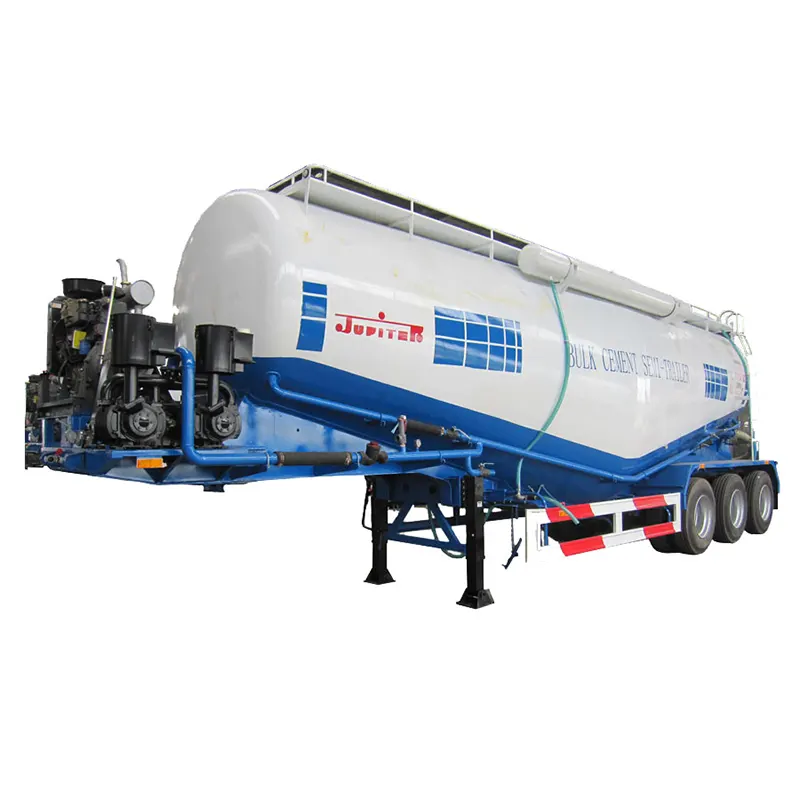

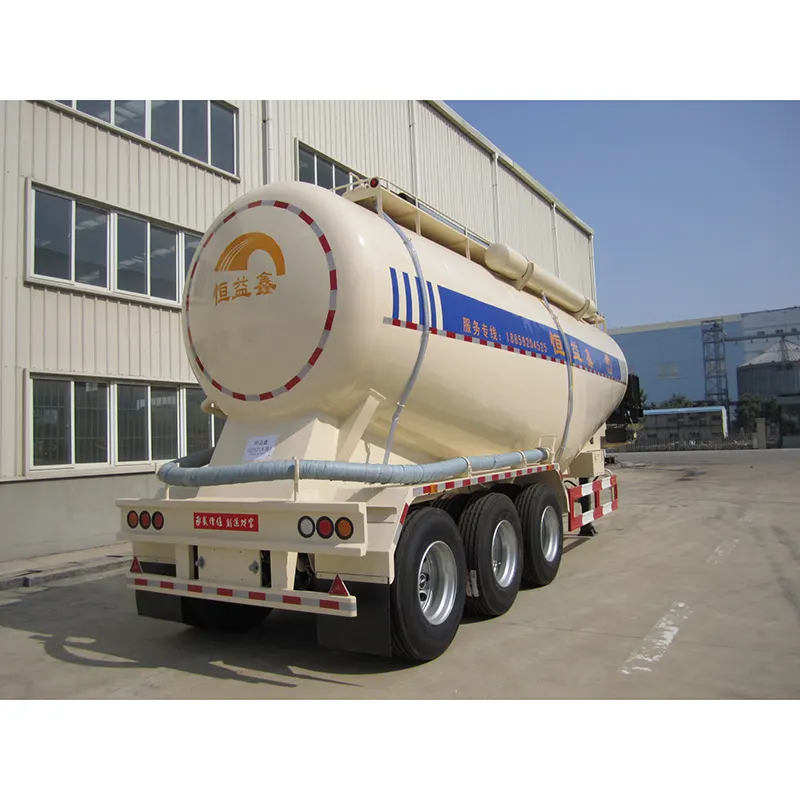

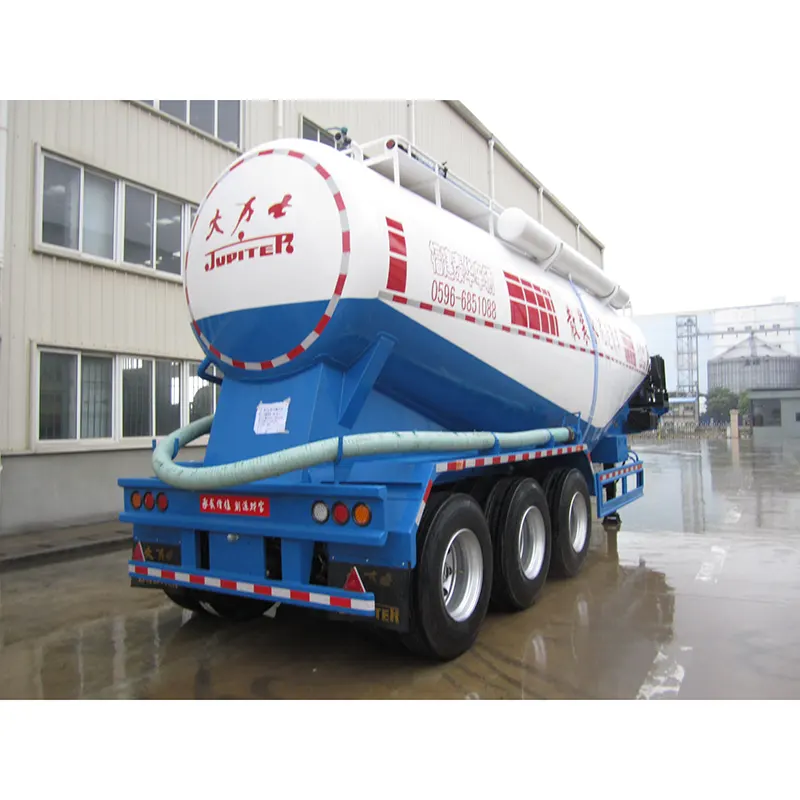

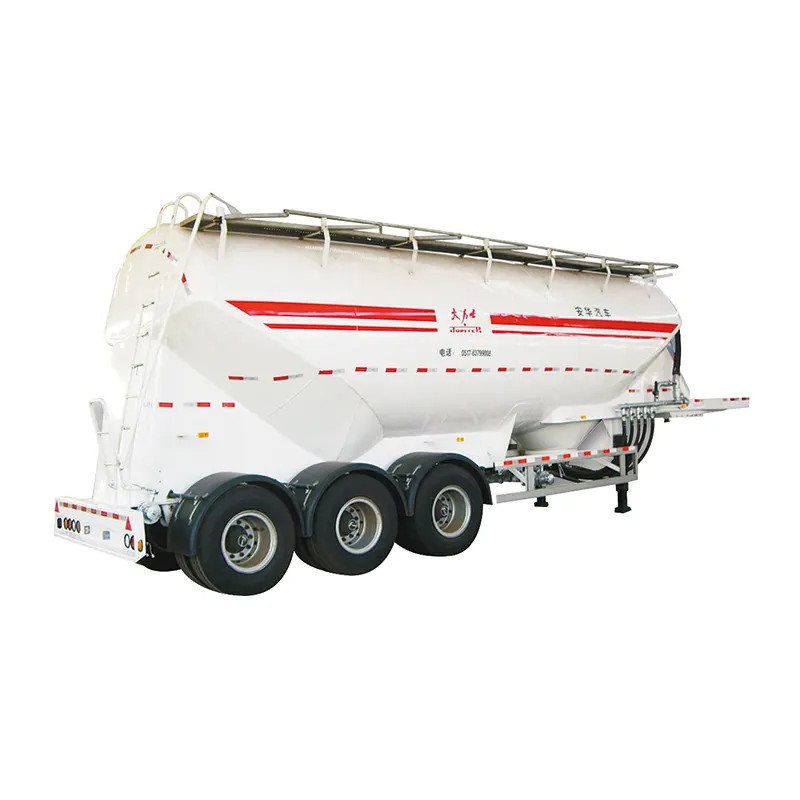

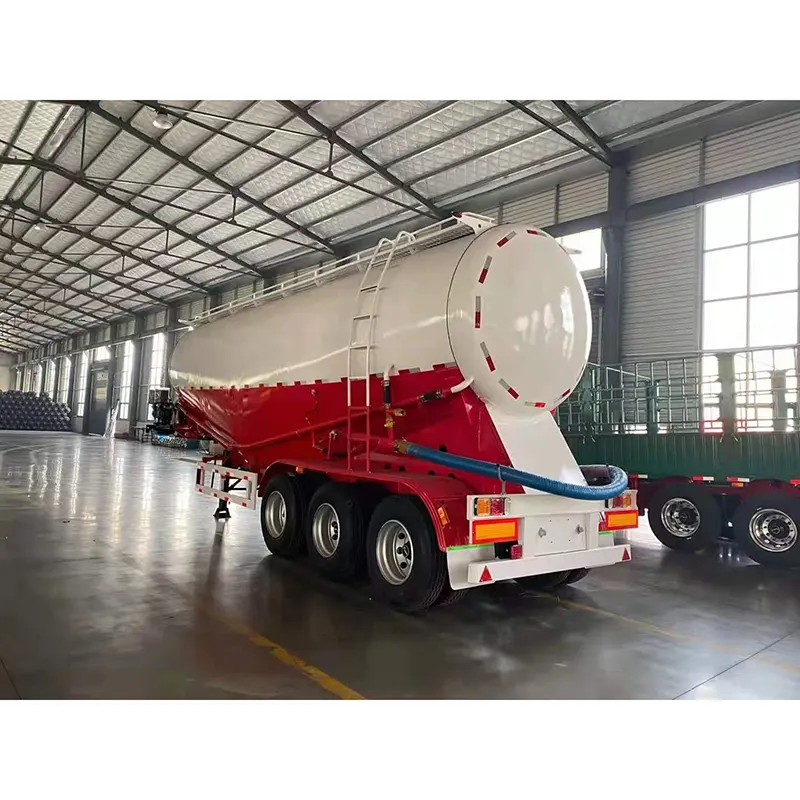

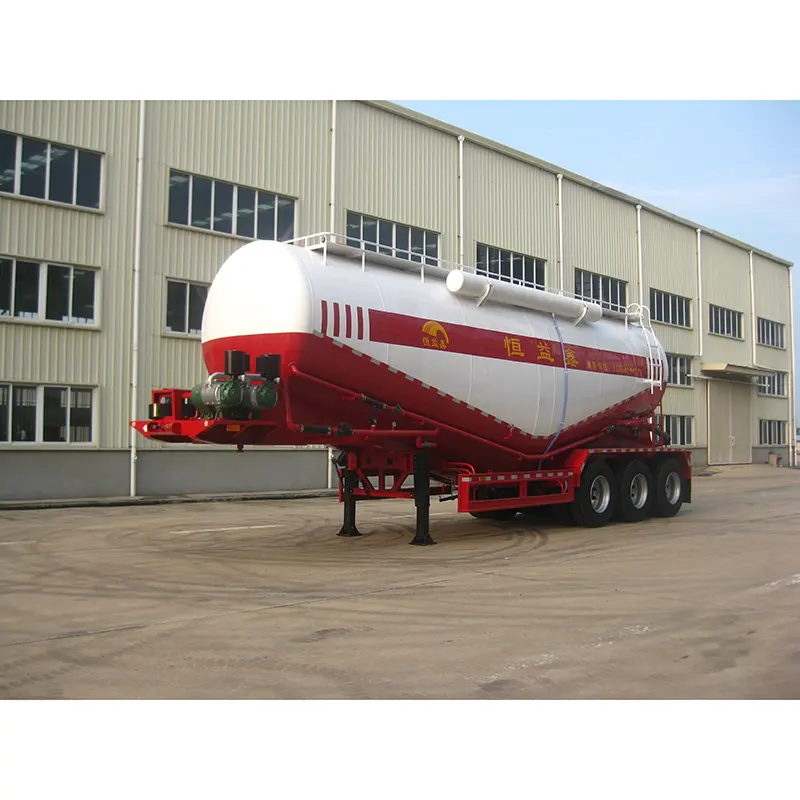

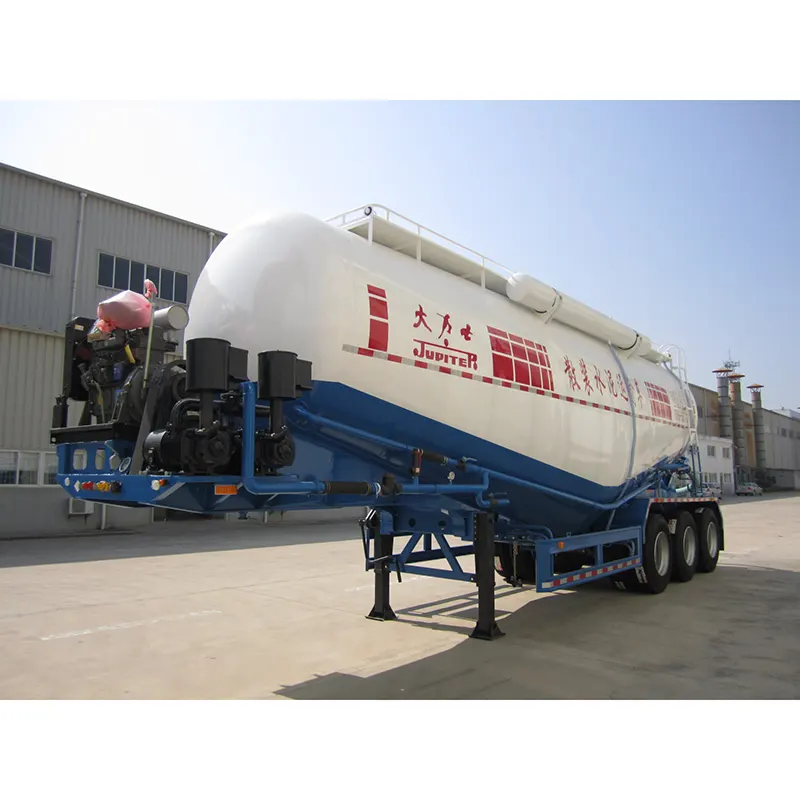

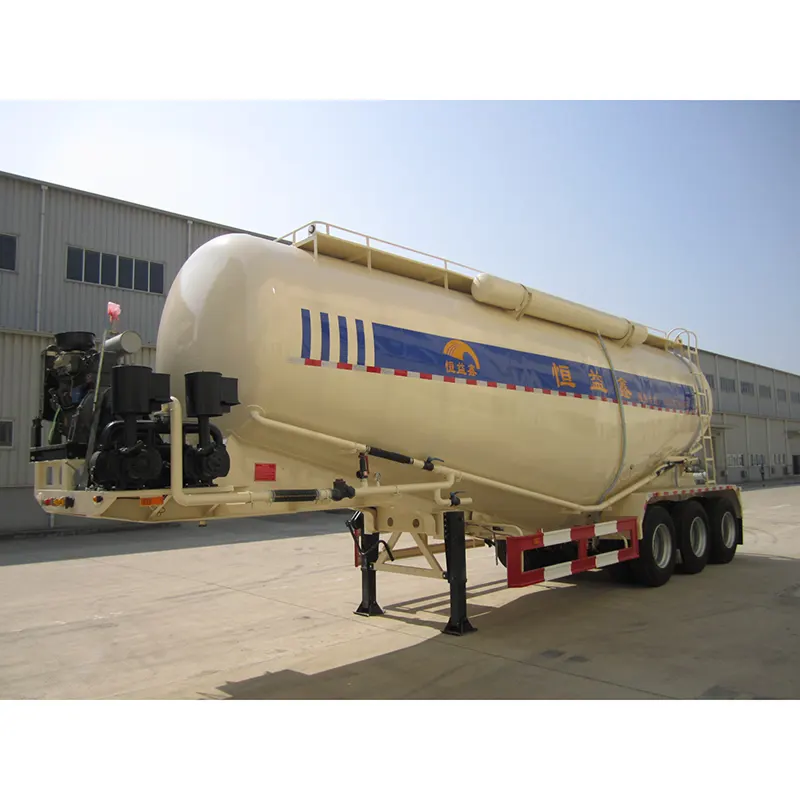

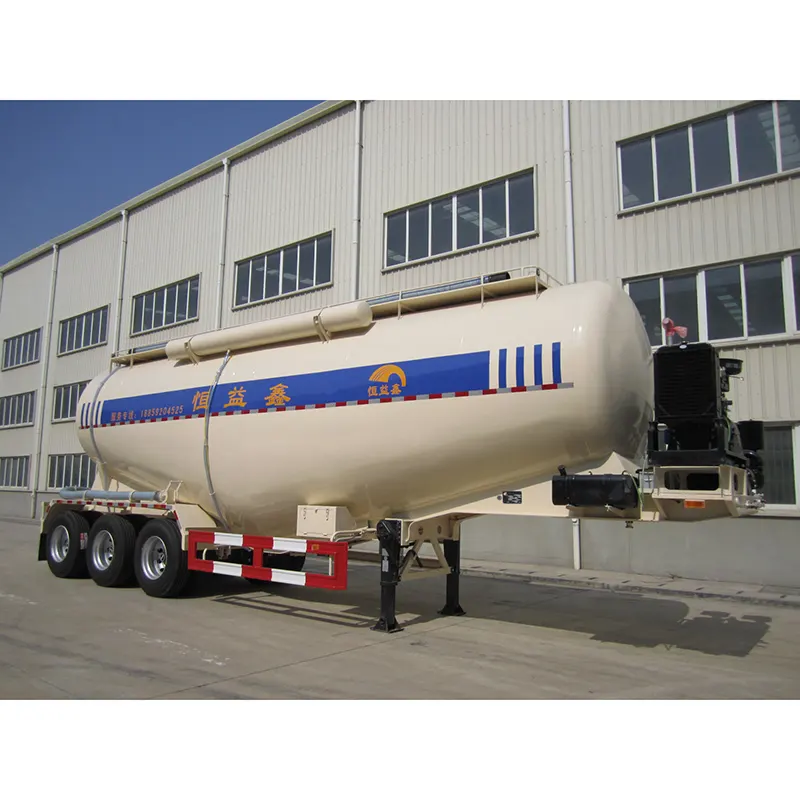

45cbm Bulk Cement Silo Tanker Semi Trailer V Type na may 42kw Power System

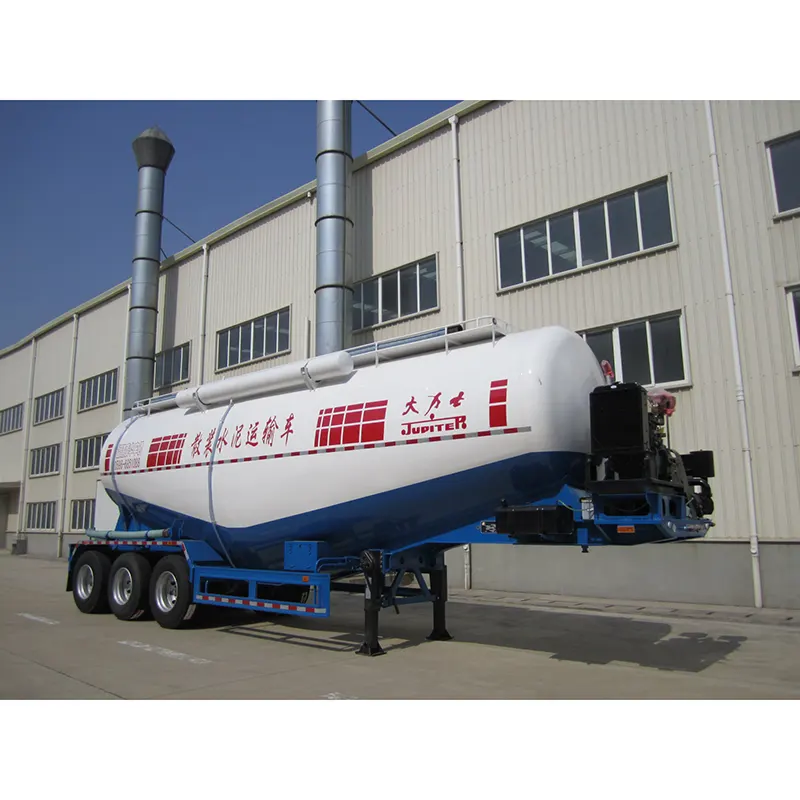

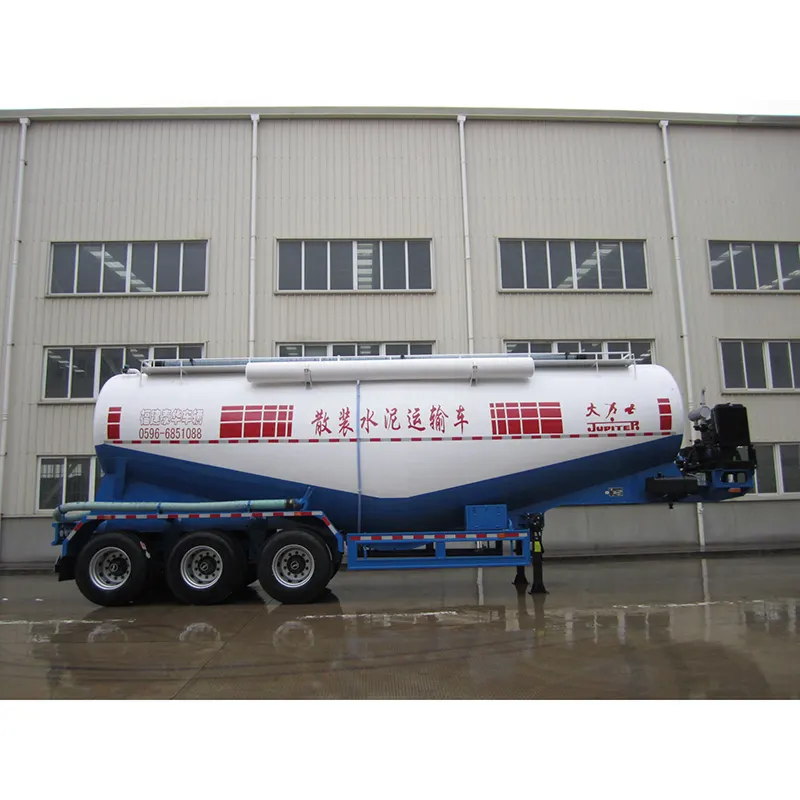

45CBM 3 Axles Bulk Cement Carrier Semi-trailer

Tampok:

Magdala ng maramihang semento, Abo, pulbos

Dimensyon(L*W*H):

11600*2500*3700mm

Pangunahing frame:

Mabigat na tungkulin at dagdag na disenyo ng tibay; Pagpili para sa mataas na tensible mababang carbon haluang metal Q345B bakal; I beam welded sa pamamagitan ng automotive arc-submerge process

modelo:

JPT9408GSN

materyal

Carbon steel

aluminyo

Bilang ng ehe:

3

Kapasidad(CBM):

30-45CBM (custom-built)

Timbang ng damo(kgs):

8,500-11,000kgs

6,000-7,000kgs

Diesel Engine

WeiChai Huafeng 4100 40KW

Air compressor

WBF-10/2

Kingpin:

Ang sikat sa buong mundo na JOST brand bolt-in/welded type 3.5”/2”

landing gear:

JOST brand two-speed manual operation 19”

Laki ng gulong:

11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5

Laki ng rim:

8.25*22.5、9.00*22.5、11.75*22.5

Axle:

Orihinal na BPW-12T/ FUWA-13T

Pagsuspinde

Germany type na may 12pcs of leafs spring/ Fuwa brand na may 8pcs of leafs spring/ Airbag suspension

Sistema ng preno:

Dual line na may WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Sistema ng kuryente:

Isang unit ng 24V 7-pin ISO standard socket; may brake light, turn light, reverse light, side light, reflector, fog light; isang set ng 6-pin na karaniwang cable

Mga kandado ng lalagyan

12(para sa 1x20GP,2X20GP,1X40HQ)

Pagpipinta:

S.A.2.5karaniwang sandblasting; Dalawang amerikana ng anti-corrosion prime; isang coat of finish painting

Accessory:

Isang tool box; isang set ng karaniwang tool

Maaari kaming bumuo ng mga trailer ayon sa disenyo at kinakailangan ng customer
