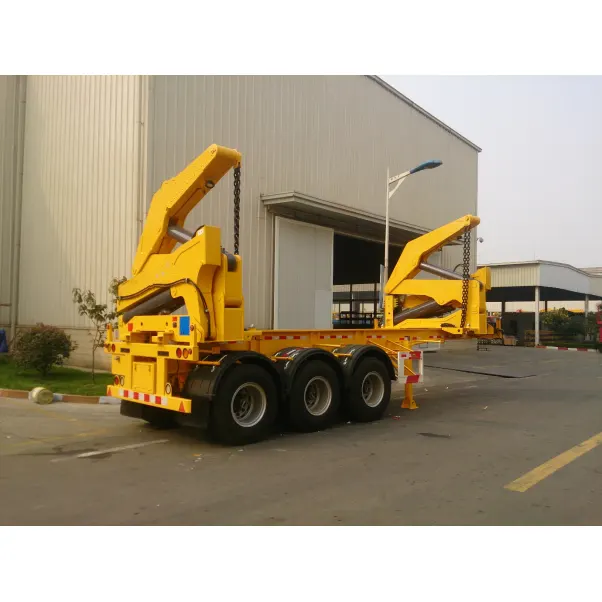

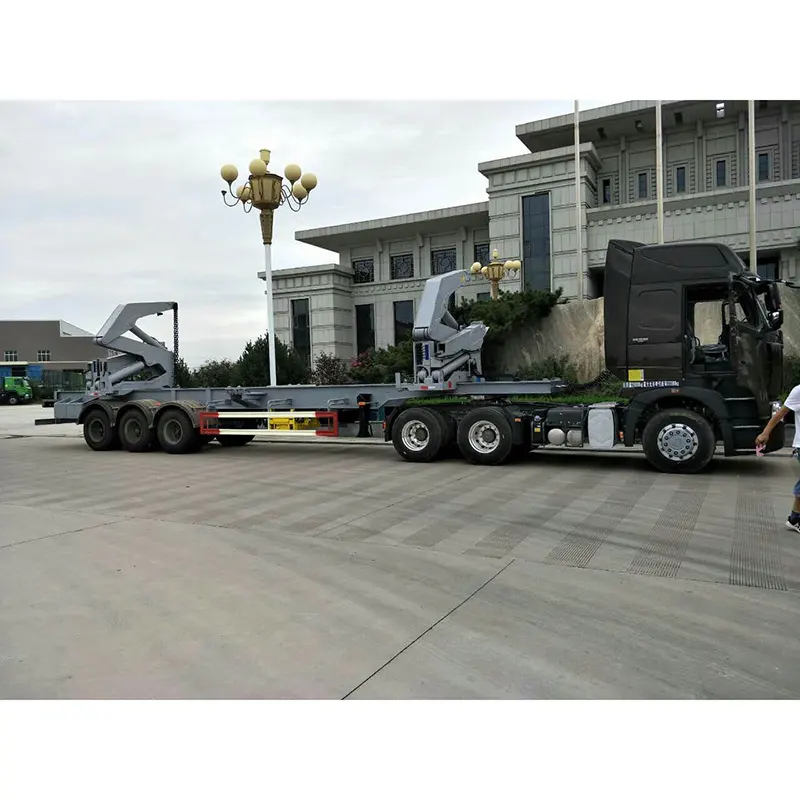

40ft 3-axle Sidelifer Semi Trailer na may Power System

Ang JUPITER 40ft 3 axles sidelifter container trailer na ito ay angkop para sa pagdala ng mga ISO 20FT container, na kadalasang ginagamit sa port, pier at container yards. Ang 40ft 3 axles sideloader trailer na may BPW Axle ay ang pinakamahusay na pagpipilian para sa transportasyon at pagpapatakbo ng 20ft container van box na may mataas na kahusayan at economic return, gumagamit kami ng mga sikat na bahagi ng brand sa 40ft 3 axles sidelifter container trailer na may JOST 2 inch King Pin, tulad ng FUWA o BPW Brands Axle, JOST King Pin.kaya inirerekomenda namin ang mga end user o driver na piliin itong 40ft 3 axles sideloader trailer na may 19 inch Landing Gear at maligayang pagdating sa pagtatanong tungkol sa aming 40ft 3 axles container trailer.

SELF LOADER CONTAINER TRAILER

PAGLALARAWAN	ITEM	YUNIT
			MGA PARAMETER
LIFTING PERFORMANCE	MAX. KAYANG BUHATIN	KG	37000
	MAX. SAKLAW NA TRABAHO	MM	4000
	MAX. STABILIZER OUTREACH	MM	3200
TIMBANG	CURB MASS	KG	8500
	MISA NG SIDELIFTER	KG	7250
	MAXIMUM GROSS MASS	KG	40000
DIMENSYON	OUTLINE DIMENSION NG SEMI-TRAILER(L×W×H)	MM	9250×2500×4000
	OUTLINE DIMENSION NG SIDELIFTER(L×W×H)	MM	1020×2500×2490
	WHEEL BASE	MM	4000+1350+1350
	TRACK(FRONT AXLE/REAR AXLE)	MM	1820/1820/1820
	FRONT OVERHANG / REAR OVERHANG	MM	-/2370
	APPROACH ANGLE/DEPARTURE ANGLE	°	-/13
ENGINE（OPTIONAL）	MODELO	——	V2403-M-DI-E3B-CSL-1
			REPRODUCTION V2403-M-DI-E3B-CSL-1
	KAPANGYARIHAN/BILIS NG PAG-ikot	KW/R/MIN	36.5/2600
	EMISSION STANDARD	——
			OFF-ROAD, EURO III

SELF LOADER CONTAINER OPTIONS

· FUWA, BPW o Certificated Quality  Axles

· Single o Double gulong

· EBS o ABS brake system

· Aluminum Rims o Steel Rims

· 2,3 o 4 na Axle

· Mechanical o Air Suspension

· Side Lifter Semi Trailer, Side Loader Semi Trailer, Contaner Side Loader Semi Trailer Trailer, Self Loader Container Trailer
